Dollies New For sale

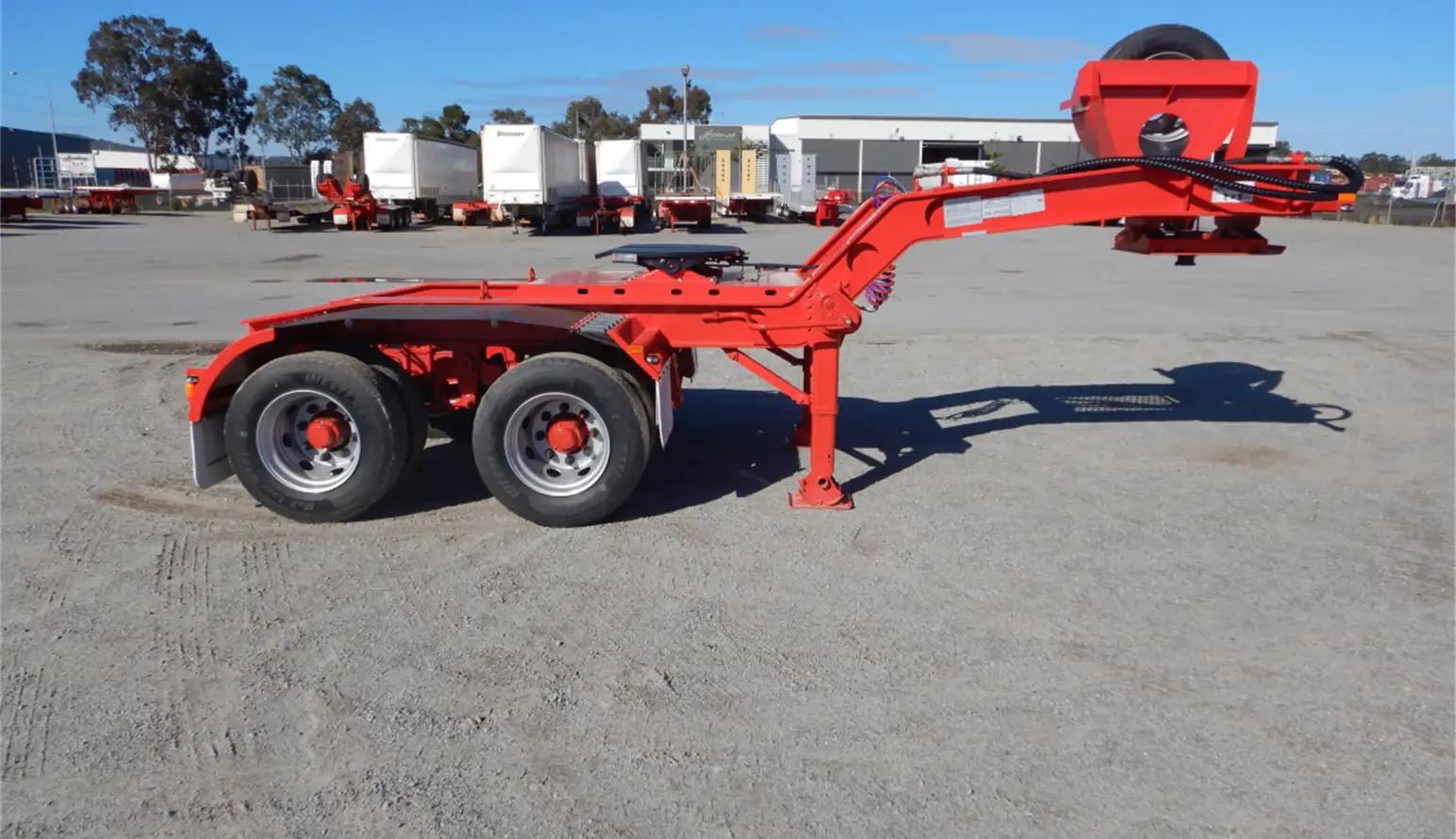

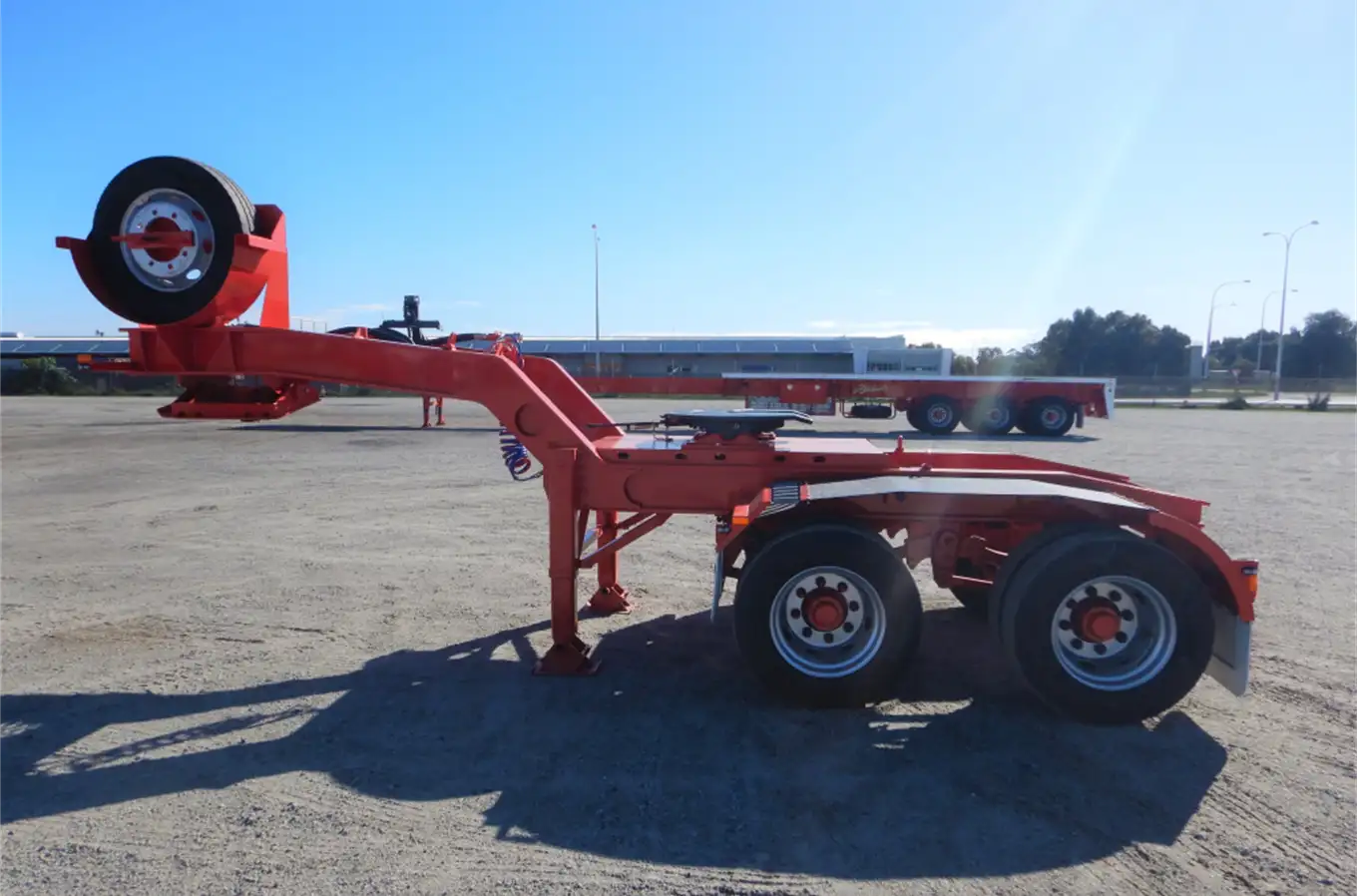

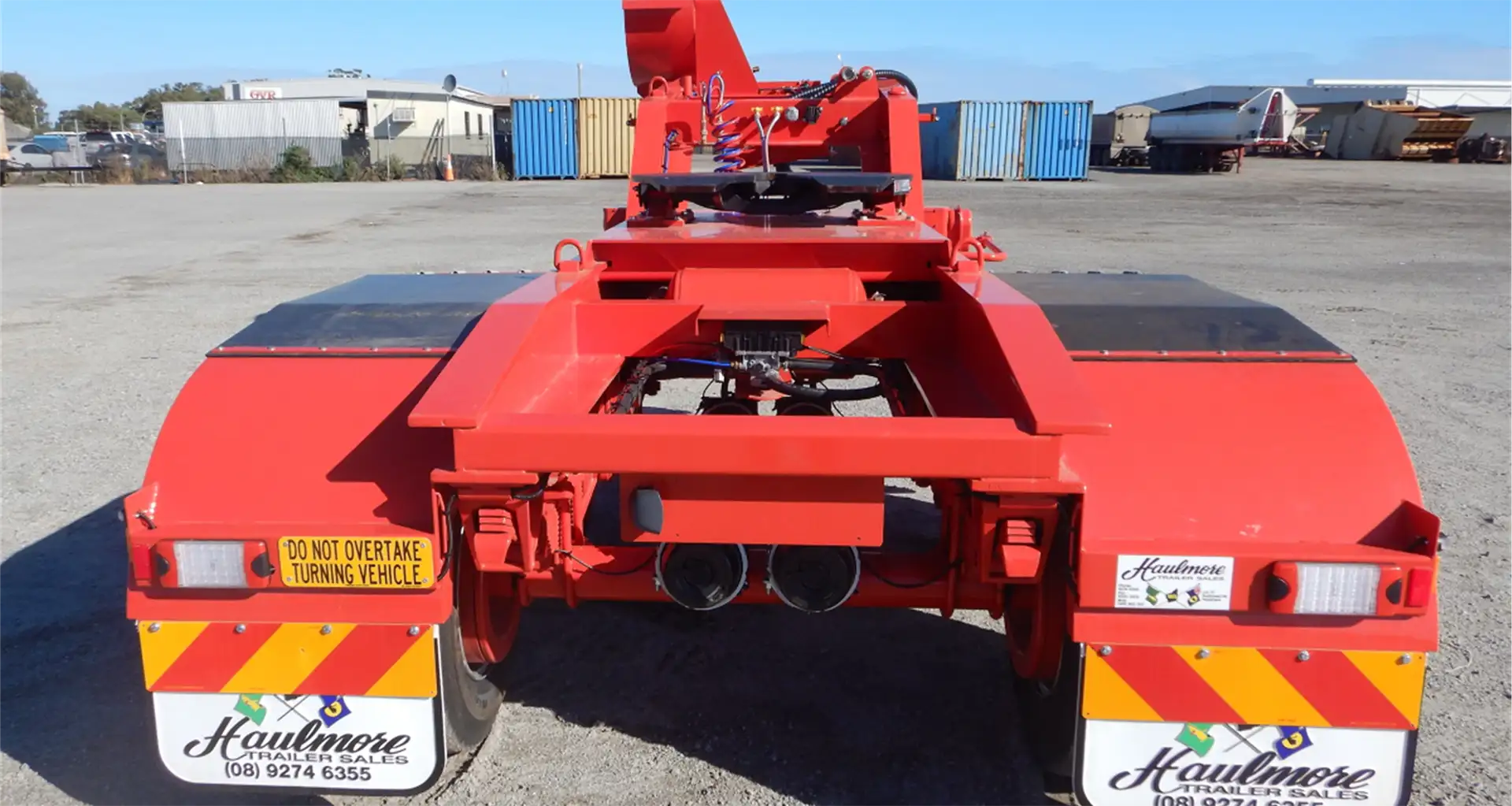

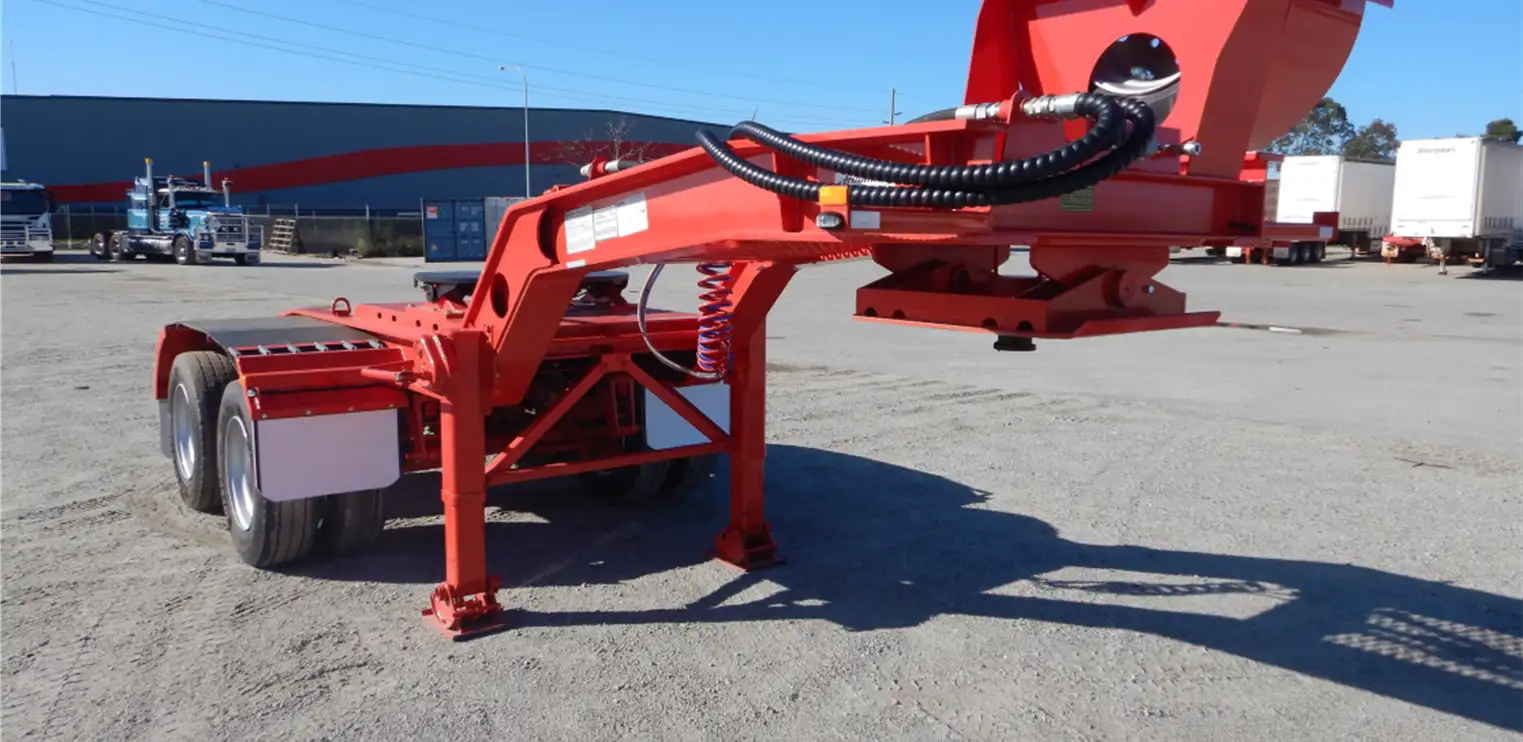

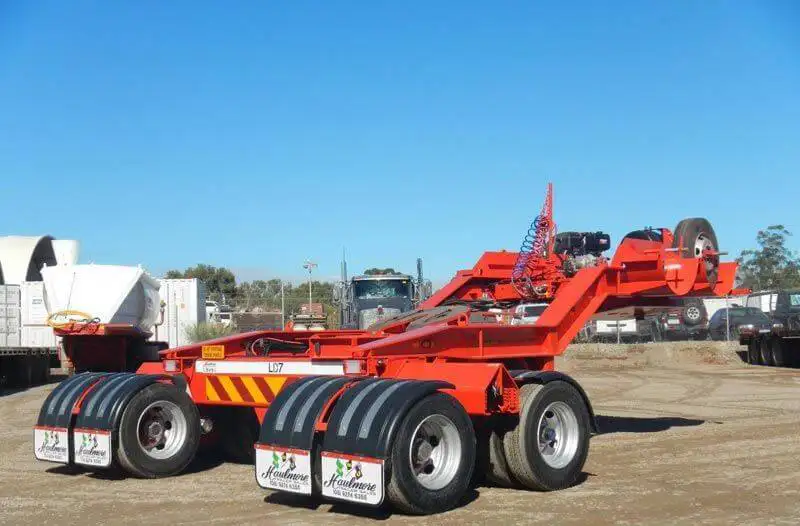

2024 Haulmore Low Loader Dolly 2 Rows of 4 Converter
Two-rows-of-four low loader converter dolly rated to 32,000 kg
Haulmore Low Loader Dolly 2 Rows of Four Converter Dolly OSCILLATING SKID PLATE – Fitted with removable 50mm or 90mm king pin
Spin the Build
Spin the BuildOrbit, pan and inspect the 2024 Haulmore Low Loader Dolly 2 Rows of 4 Converter from every angle.
Mass & Ratings
| Design rating | 32,000 kg |
|---|---|
| AGG trailer mass | 32,000 kg |
| Tare weight | 3,660 kg |
| Payload | 28,340 kg |
Running Gear
| Tyres | Nine (9) 265/70R 19.5” tyres |
|---|---|
| Stud count | 8 stud |
| PCD | 275 PCD |
| Axle make | K HITCH |
| Suspension | Tandem mechanical 9 leaf over slung |
| Leaf count | 9 leaf |
| Axle configuration | 2 rows of 4 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |
| Electrical | Multi-voltage |
| Lighting | HELLA LED |
Securing & Accessories
| King pin | 90mm |
|---|---|
| Turntable | 90mm |
Key features
- Haulmore Low Loader Dolly 2 Rows of Four Converter Dolly, PRICE: POA
- OSCILLATING SKID PLATE – Fitted with removable 50mm or 90mm king pin
Built for
- Road train conversion
- Heavy haulage coupling
