2024 Haulmore Low Loader Dolly 3 Rows of 4
Three-rows-of-four low loader dolly rated to 47,000 kg with WABCO EBS
Purchase the 2024 Haulmore Low Loader Dolly with 3 Rows of 4. Offering unmatched stability and high performance for large loads. Adjustable Turntable—1170mm Stress Relieved Skid Plate Assembly EBS Brake System 10 Stud Disc Brake Axles
Spin the Build
Spin the BuildOrbit, pan and inspect the 2024 Haulmore Low Loader Dolly 3 Rows of 4 from every angle.
Mass & Ratings
| Design rating | 47,000 kg |
|---|---|
| AGG trailer mass | 47,000 kg |
| Tare weight | 4,240 kg |
| Payload | 42,760 kg |
Running Gear
| Tyres | Thirteen (13) 265/70R 19.5” tyres |
|---|---|
| Stud count | 8 stud |
| PCD | 275 PCD |
| Suspension | Tri mechanical 9 leaf over slung |
| Leaf count | 9 leaf |
| Axle configuration | 3 rows of 4 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |

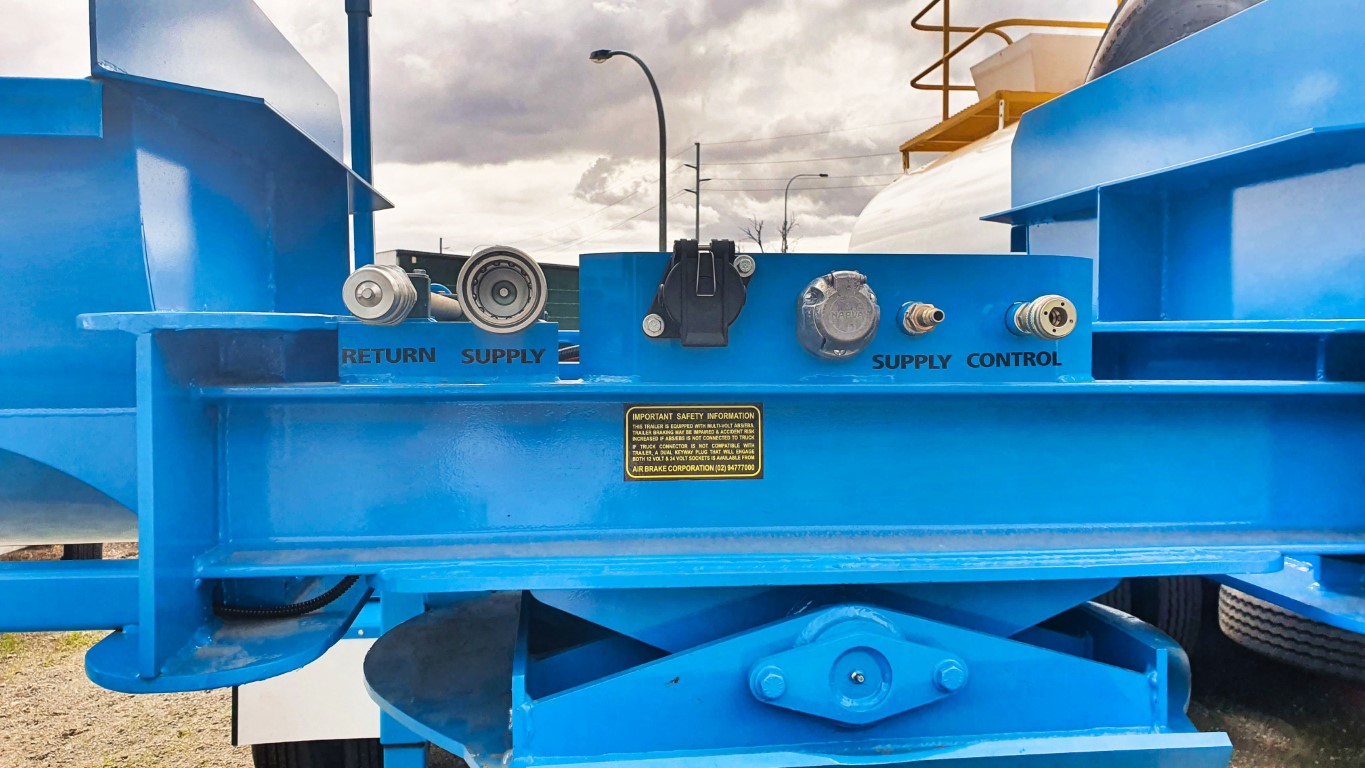

| Electrical | Multi-voltage |
| Lighting | HELLA LED |
Securing & Accessories
| King pin | 90mm |
|---|---|
| Turntable | 90mm |
Key features
- Adjustable Turntable—1170mm

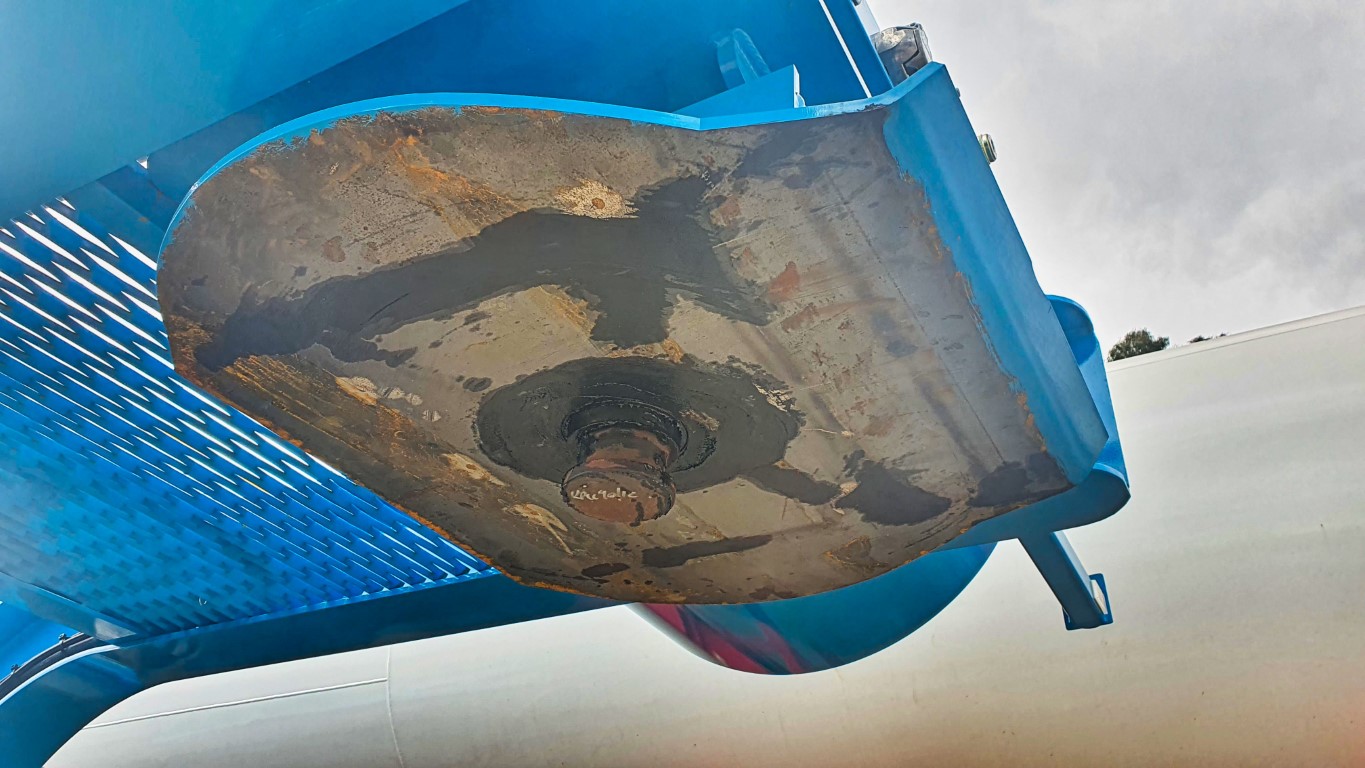

- Stress Relieved Skid Plate Assembly
- EBS Brake System
- 10 Stud Disc Brake Axles
Built for
- Road train conversion
- Heavy haulage coupling
Want the numbers on the 2024 Haulmore Low Loader Dolly 3 Rows of 4?
Send us the brief — we’ll confirm spec, availability and price.
